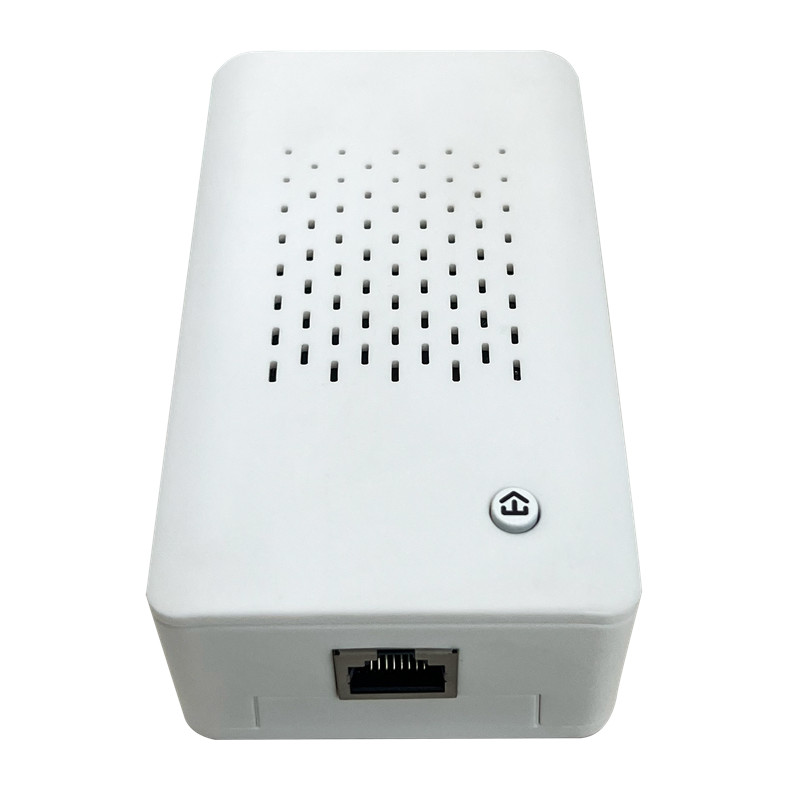

WD-1200MH-PoE
description1
PRODUCT Introduction
WD-1200MH-PoE Smart Link 1200Mbps Ethernet Bridge embarks on a concept of No New Wires data communications, and it transforms your in-house powerline into a networking infrastructure. It provides SmartLink Plus coupling to the Line-Neutral pair and the Line-Ground pair of the AC mains. It successfully reduces "dead spots", increases throughput and network coverage within a home. Surf the Internet and share data at the speed up to 1Gbps （PHY rates） through powerline. And Built-in PoE Injector can provide 55V/48V classification power via CAT5E / CAT6.
description1
PRODUCT Features
● Plug and play
● Gigabit port
● Support HomeplugAV2 Protocol standard
● Data transfer rates of up to 1200 Mbps
●IGMO(IPv4) Snooping & MLD (IPv6) Snooping
● Working temperature: -20℃-70℃
● Operating humidity: 10%-85% no condense
● Storage humidity:5%-90% no condense
● 300 Meters over electrical circuit
● PoE function
description1
PRODUCT parameters
| Item | WD-1200MH-PoE |
| Interface | 1*LAN10/100/1000Base-TX applied for RJ45 interface |
| LED display lights | PLC(PLC signal light) |
| Transmission band | 2-68MHz |
| Protocol | HomePlug AV2 IEEE 802.3 IEEE 802.3u 10/100Ethernet Standard IEEE802.3at/af Standard |
| Security | 128-AES |
| Transfer rate(PHY) | 1200Mbps |
| Modulation | OFDM |
| Plug | EU, UK, AU, US |
| Operating system | Windows 98/ME/NT/2003/7 Windows XP Home/Pro Mac OSX Linux |
| Power over Ethernet | Provides 55V,30w/48V 15.4w for PD (Power device) CAT5 Ethernet Pin Usage |
| Power source | AC 100V-240V 60/50Hz |
| Environment | working temperature:0 ℃-70℃ working humidity 10%-90% non-condensed state |
| Size | 105mm×60mm×37mm L×W×H |
| Weight | 180g |
| Certification | FCC CE ROHS |
description1

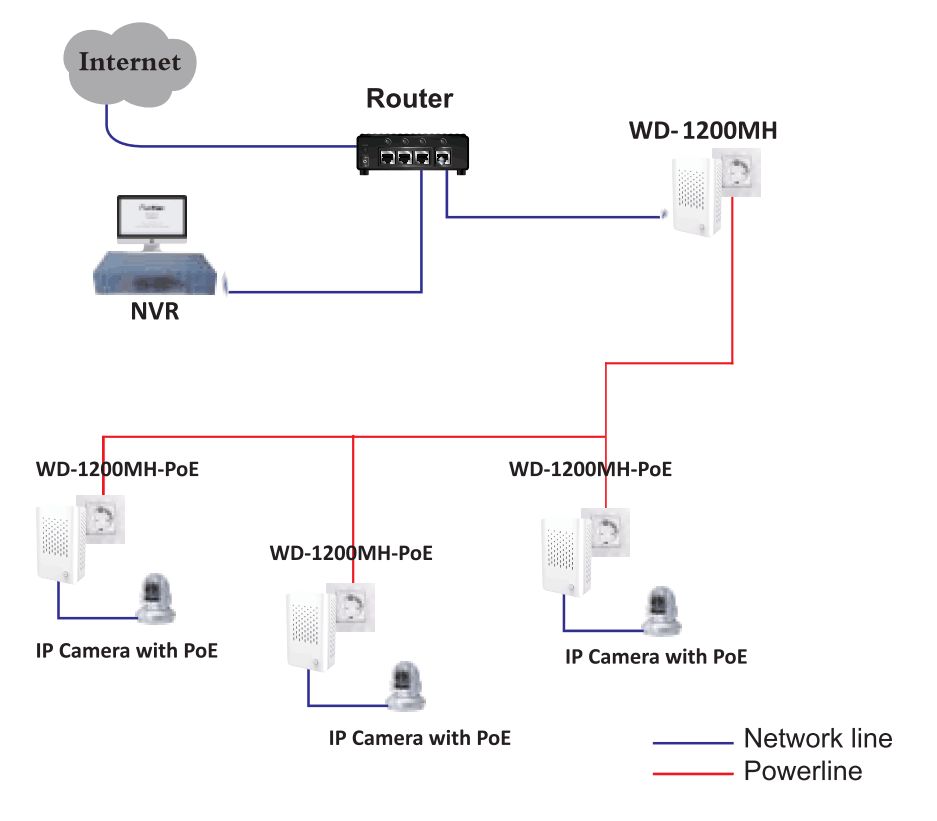

Topological
