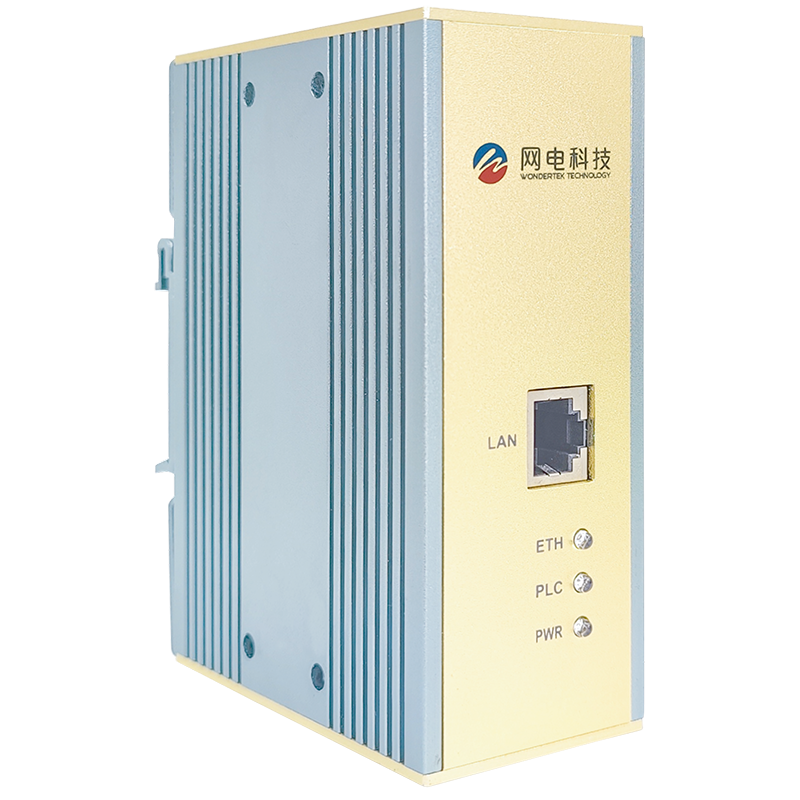

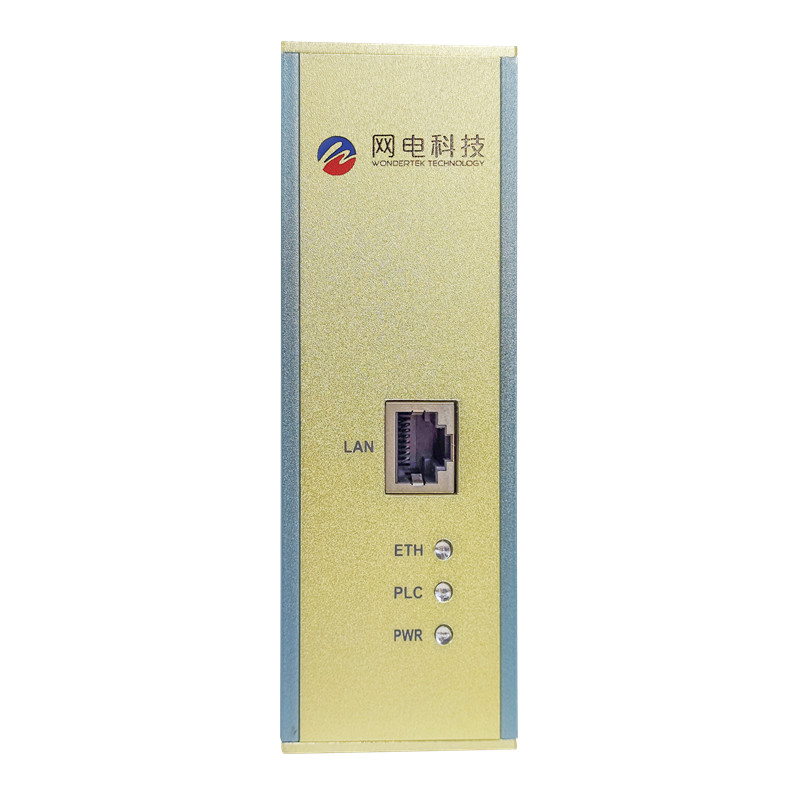

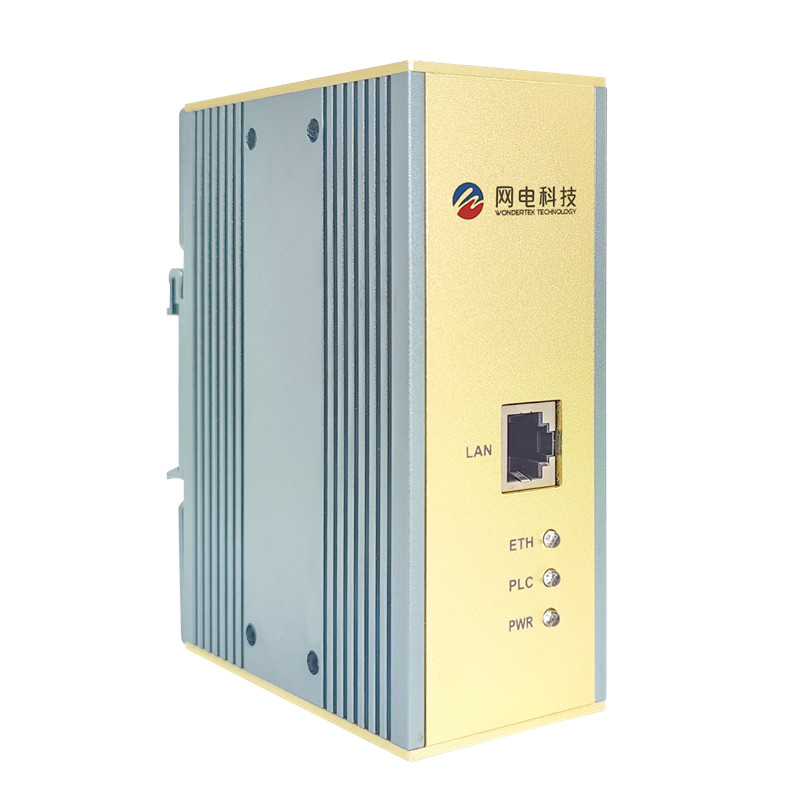

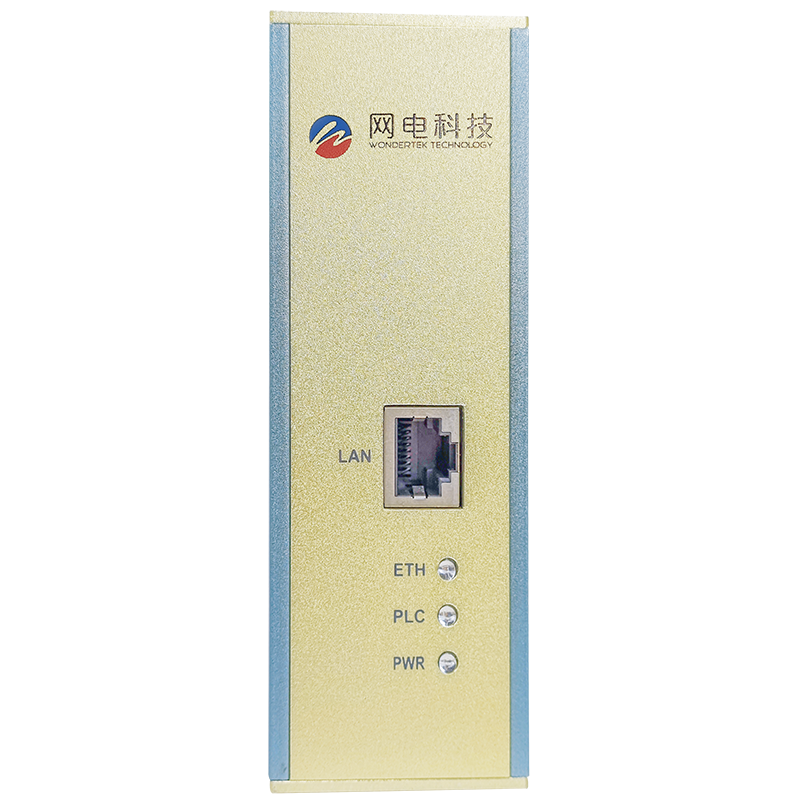

WD-1201M-DIN(D)
1.1.1 Technical parameters
1.1.2 Manageability
1.1.3 Working environment
1.1.4 Design standards
IEC 60529 IEC 50022 IEC 60068-2-6 HomeplugAV2
1.1.5 Technical parameters
| Model | WD-1201M-DIN(D) |
| Interface | 1*LAN 10/100/1000Base-TX self adaption RJ45，1*DC power interface |
| LED display light | Ethernet, PLC link ,Power |
| Transfer frequency | 2-68MHz MIMO |
| Protocol（PHY） | IEEE802.3，IEEE802.3x, IEEE802.3u HomeplugAV2 |
| Security | 128-AES |
| Number of each group | Up to 63 |
| installation | Rail TS35 |
| Protection level | IP40 |
| Modulation | OFDM |
| Effective transfer rate | TCP/IP 500Mbps |
| Manageability | 802.1D Ethernet Bridge |
| Quality of Service(QoS) | |
| IGMO(IPv4)Snooping&MLD(IPv6)Snooping | |
| Voltage range | DC 10V-80V |
| Operating temperature | -40℃-85℃ |
| Size | 123*97*47(mm)（L×W×H） |
| Weight | 0.25kg |
| Operating environment | Operating humidity:10%-85% (no condense) |
1.2 Features
1.3 Immunity of ESD
The testing voltage which the device should be beared: ±6kV direct Discharge, ±8kV air discharge. Discharge number in Each sensitive testing point: Plus-n-Minus 10 times each, Every time the discharge interval is 1 s, according to B/T 17626.2-2006.
1.4 Immunity of electrical fast transient impulse group(Common MODE)
1.5 Anti interference of surge impact
1.6 Anti- vibration
Meet the demand of MX3 in TB1433(0-200Hz,2g acceleration, maximum amplitude 7mm), interface with no loose, device with no Sealing off and drop in the test
1.7 Installation drawing
WD-1201M-DIN(D)

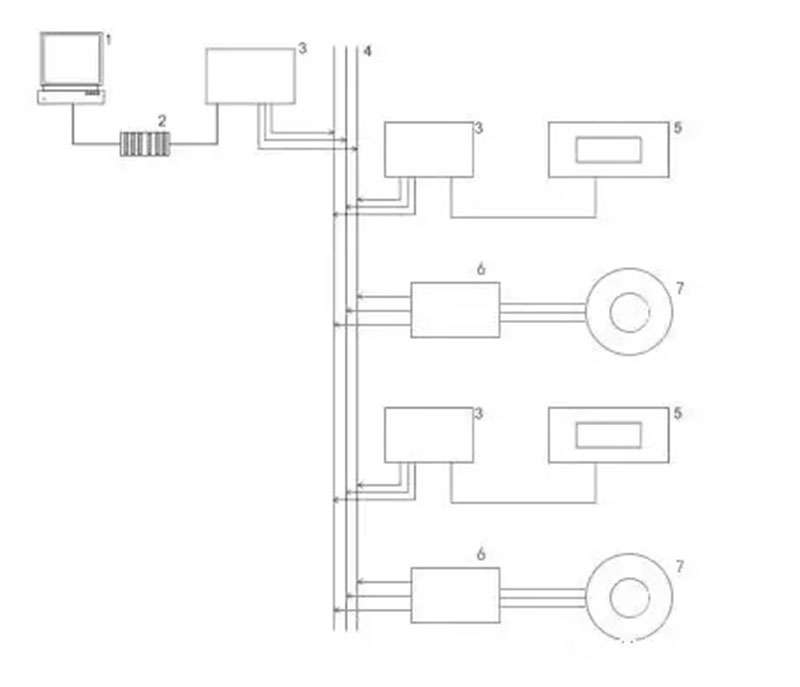

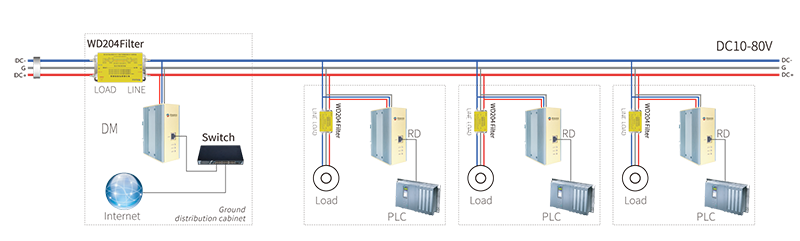

1.8 System architecture drawing and field wiring
1，Control computer 2, switch or router 3, WD-1201M-DIN(D) 4, conductor rail/cable 5, peripheral equipment 6, PLC-blocking filter 7, load

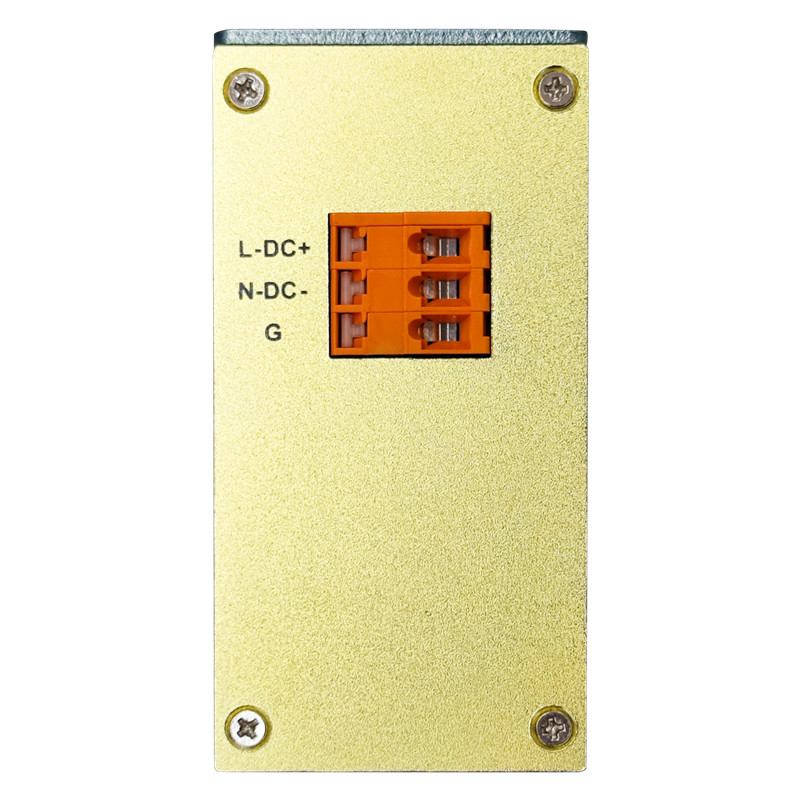

On-site power environment: DC+ DC- G
1.9 Reference for selection of PLC -Blocking -Filter
| Model | WD204series |
| The rated voltage | 125/250VAC |
| Working frequency | 50/60Hz |
| Rated current | 10-200A |
| Withstand voltage test | 1450VDC, 2sec (Line to Line) 2250VDC, 2sec(Line to Ground) |
| Leakage current | 90mA Max |
| Climate type | -25℃to+85℃ |
| The standard reference | UL1283,CSA22.2 No.8 1996,IEC/EN60939 |
| Protection grade | IP40 |

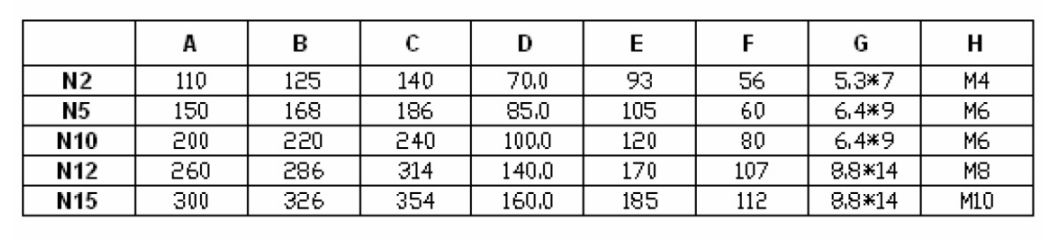

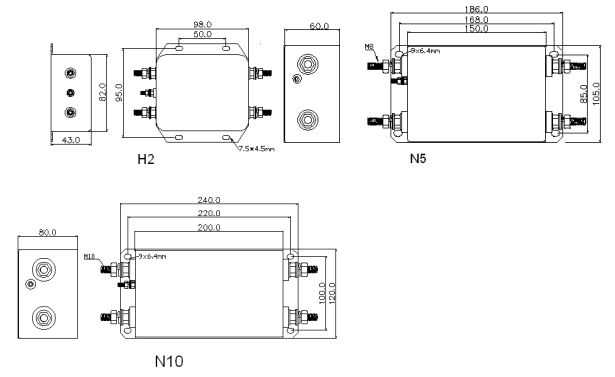

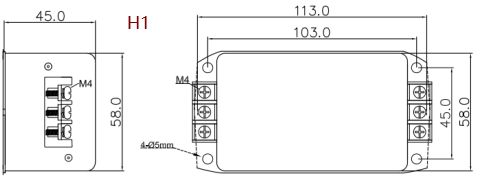

1.9.1 WD204 Series specifications and dimensions
| model Model
| Rated current(A) Rated Current
| Leakage current (≤mA) Leakage Current
| Dimensions Dim. Fig.
| Output Connection | ||
| | | | ||||
| WD204-10A-01 | 10 | 0.5 | H1 |
|
|
|
| WD204-20A-01 | 20 | 0.5 | H1 |
|
| M4 |
| WD204-30A-01 | 30 | 0.5 | H2 |
|
| M4 |
| WD204-40A-01 | 40 | 0.5 | H2 |
|
| M4 |
| WD204-50A-01 | 50 | 0.5 | H2 |
|
| M4 |
| WD204-60A-01 | 60 | 0.5 | H2 | - | - | M6 |
| WD204-75A-01 | 75 | 0.5 | N5 | - | - | M8 |
| WD204-100A-01 | 100 | 0.5 | N5 | - | - | M8 |
| WD204-120A-01 | 120 | 0.5 | N5 | - | - | M8 |
| WD204-50A-01 | 150 | 0.5 | N10 | - | - | M10 |
| WD204-200A-01 | 200 | 0.5 | N10 | - | - | M10 |

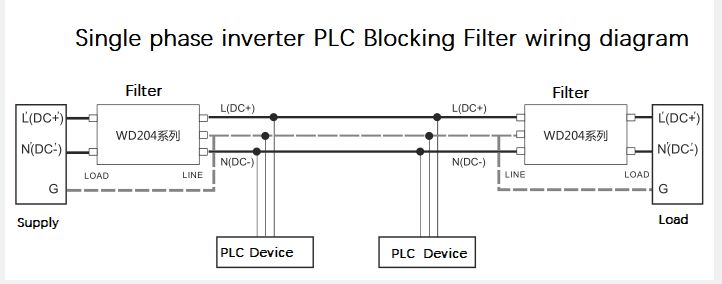

1.9.3 The installation of PLC-Blocking Filter
All loads are installed on the Filter's Load side. Do not connect them backwards.
