WD-T1202MH
WD-T1202MH
WD-T1202MH
WD-T1202MH
WD-T1202MH

WD-T1202MH

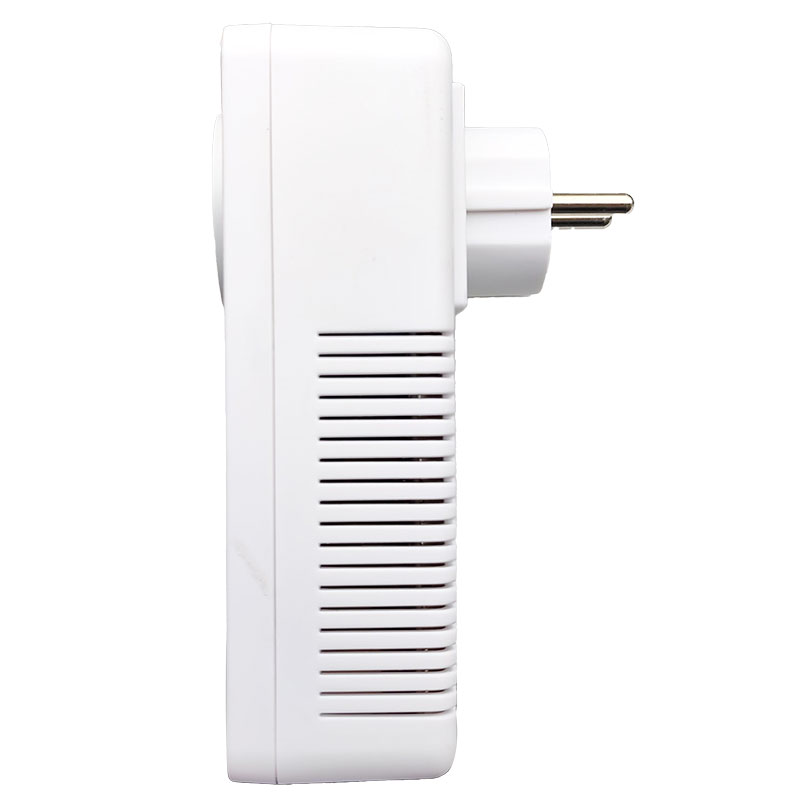

Two Gigabit port passthrough WD-T1202MH powerline adapter embarks on a concept of No New Wires data communications, and it transforms your in-house powerline into a networking infrastructure. It provides SmartLink Plus coupling to the Line-Neutral pair and the Line-Ground pair of the AC mains.It successfully reduce "dead spot", increase throughput and increase network coverage within a home. Surf the Internet and share data at the speed up to 1.2Gbps PHY rates through powerline with AC outlet design, it's Convenient for the end user.

    Contact us
    product details
    description1

    PRODUCT Introduction

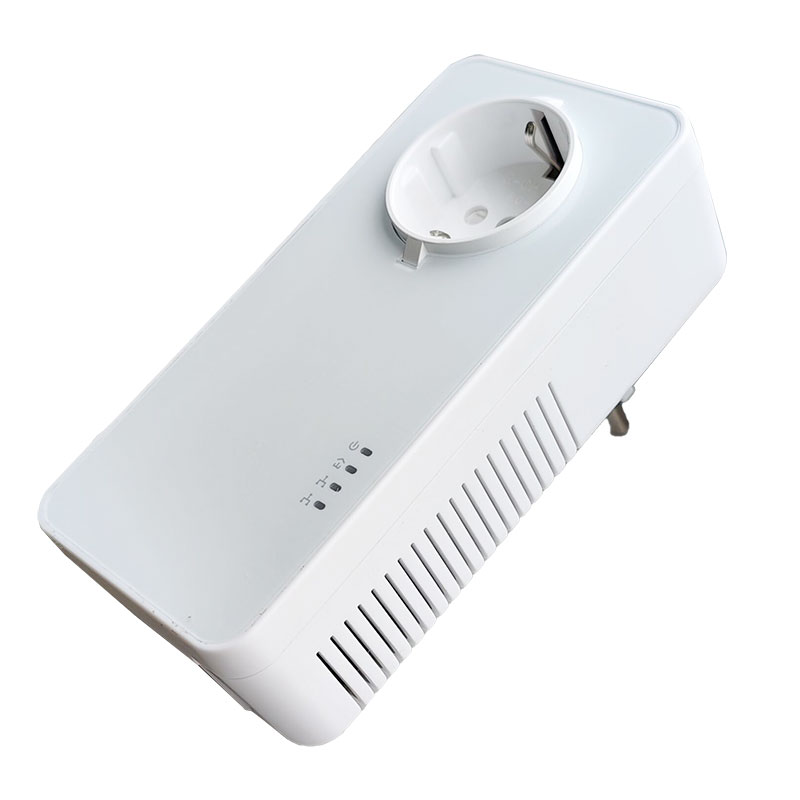

    The WD-T1202MH has an integrated AC pass-through power socket. Your powerline adapter can now be used like a traditional electrical outlet. Plug your smart TV or game consoles into the adapter. No socket left to waste.

    description1

    PRODUCT Features

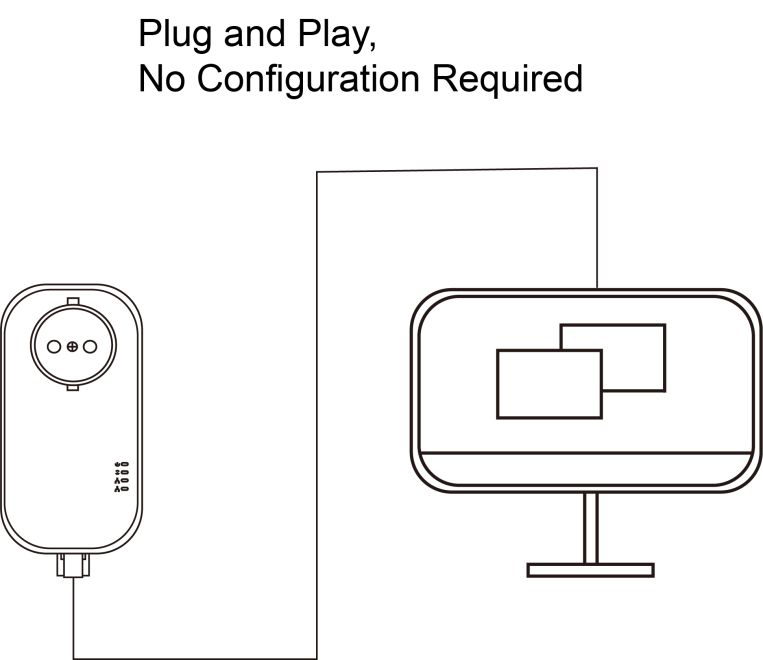

    ● Plug and play
    ● Two Gigabit port
    ● Support HomeplugAV2 Protocol standard
    ● Data transfer rates of up to 1200 Mbps
    ● IGMO (IPv4) Snooping & MLD (IPv6) Snooping
    ● Working temperature: -40℃-80℃
    ● Operating humidity: 10%-85% no condense
    ● Storage humidity:5%-90% no condense
    ● 300 Meters over electrical circuit
    ● Passthrough function

    description1

    PRODUCT parameters

    Model WD-T1202MH

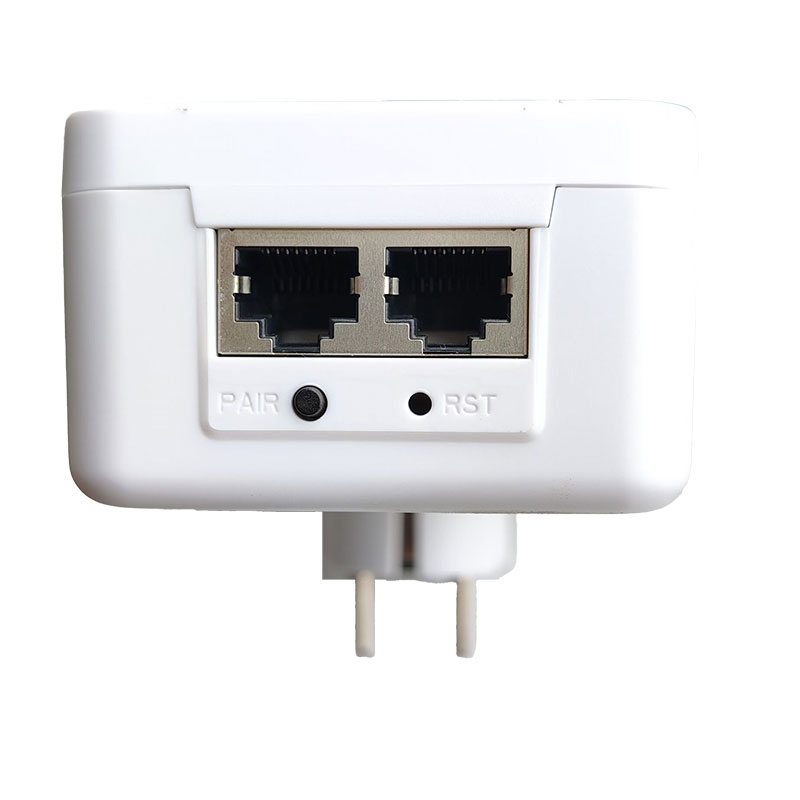

    Interface 2*LAN10/100/1000Base-TX applied for RJ45 interface

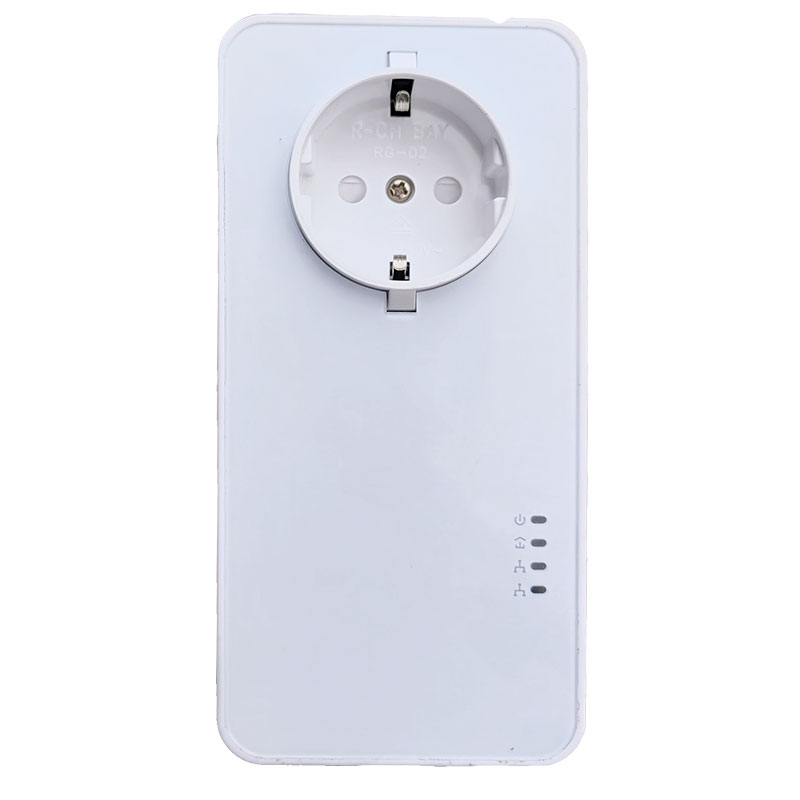

    LED display lights PWR(power light), PLC(PLC signal light), ETH(Ethernet light)
    Transmission band 2-68MHz with MIMO
    Protocol HomePlug AV2 IEEE 802.3 IEEE 802.3u 10/100/1000Ethernet Standard
    Security 128-AES
    Transfer rate(PHY) 1200Mbps
    Modulation OFDM

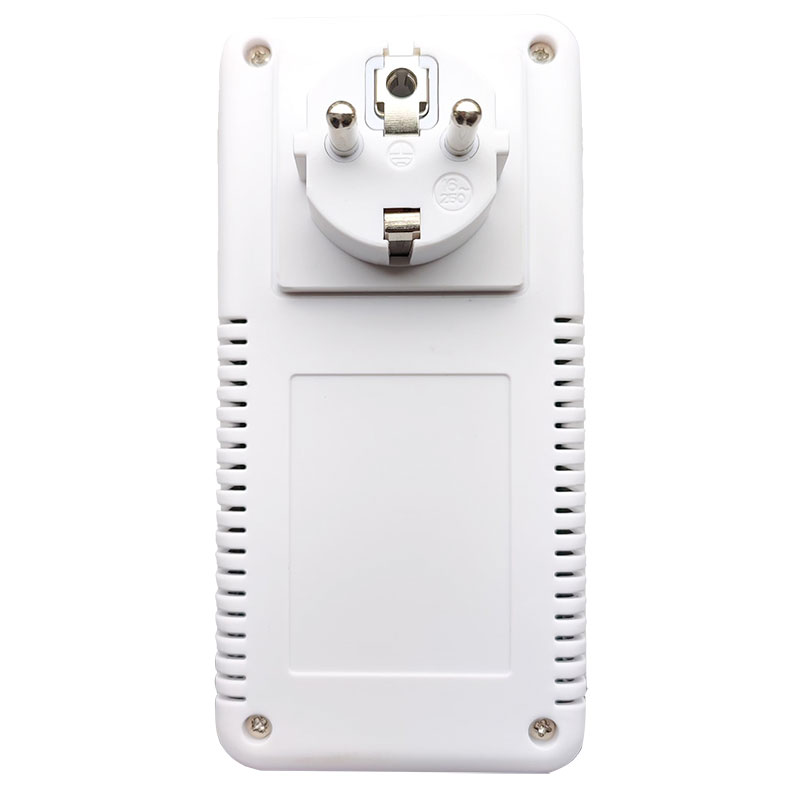

    Plug EU, UK, AU, US
    Operating system Windows 98/ME/NT/2003/7 /10/11Windows XP Home/Pro Mac OSX  Linux
    Power source AC 100V-240V 60/50Hz
    Environment

    working temperature:0 ℃-70℃

    working humidity 10%-90% non-condensed state
    Size 145mm×70mm×43mm   L×W×H
    Weight 240g
    Certification FCC CE ROHS

    description1

    Anti-interference

    65339de4hp
    Topological 0ed0f7e1-eab5-47c0-9fc7-ad49608f8309
