The HomePlugAV2 with WiFi ac from Wondertek . This is the latest Powerline gigabit generation. Integrated with WiFi ac for the first time—the most innovative WiFi standard with the best performance. Now mobile devices such as smartphones, tablets and laptops can take advantage of the full bandwidth of an Internet connection. the Gigabit LAN port is available for additional terminal devices. Both data transmission over electrical wiring and wireless communication using WiFi ac (simultaneously at 2.4 and 5 GHz) meet the latest state-of-the-art standards. HomePlugAV2+ WiFi ac—WiFi anywhere. Faster and easier than ever before.

    Contact us
    product details
    description1

    PRODUCT Introduction

    The HomePlugAV2 Power line  Ethernet Bridge With Wi-Fi enable you to set up your private network at home with your existing power line  .

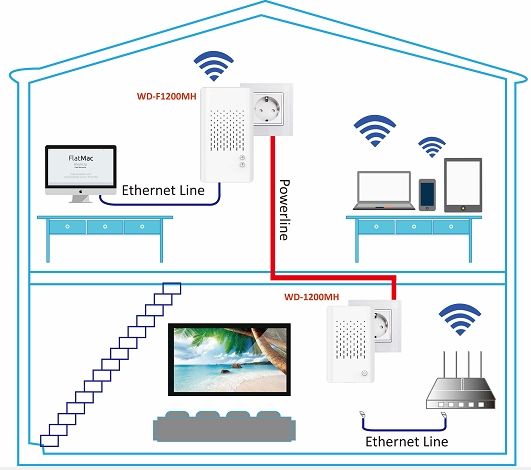

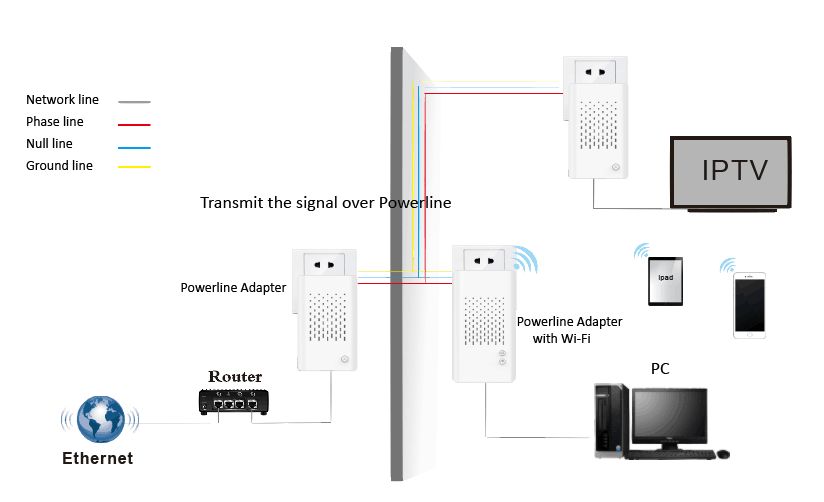

    You may just find a power outlet in the wall ,put the plug into the power outlet ,and you can have 1200mbps home network ready for the broadband internet and iptv transmission among rooms and wireless communication using wifi ac.

    description1

    PRODUCT Features

    ● HomePlugAV2 PLC Port as Home Network Backbone by Using Existing power line
    ● PHY Rate up to 1.2Gbps
    ● 2*10/100/1000Mbps Ethernet Ports
    ● Energy Efficiency (Green) Ethernet Support
    ● Signal Status Indication
    ● Remote Management (Optional)
    ● Diagnosis
    ● QoS Priority and Mapping Support
    ● Tag VLAN Configuration
    ● IGMP Snooping Control
    ● Compliant with IEEE 802.11 a, b, g, n, ac (2.4 / 5 GHz concurrent)
    ● Built-in Wi-Fi 867 (mbps, 2x2 MIMO/ 5 GHz), Wi-Fi 300 (mbps, 2x2 MIMO/ 2,4 GHz)

    description1

    PRODUCT parameters

    Specification

    Item

    WD-F1200MH

    Interface



    2*10/100/1000 Base-T self-adapting standard Ethernet interface

    Wi-Fi 867 (mbps, 2x2 MIMO/ 5 GHz), Wi-Fi 300 (mbps, 2x2 MIMO/ 2,4 GHz)

    1*POWER (AC) interface

    LED display light Function

    PLC light

    WI-FI light

    QOS  Integrated

    Modulate

    OFDM

    Transfer frequency band

    2and 68MHz

    Protocol



    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.11 a, b, g, n, ac (2.4 / 5 GHz concurrent) , IEEE 1905.1, IEEE 802.1p, IEEE 1901

    Auto MDI/X Wi-Fi Alliance HomePlugAV2

    CSMA/CA, TDMA

    Security

    128-AES

    Transfer rate

    PLC 1200Mbps   Wi-Fi 867 (mbps, 2x2 MIMO/ 5 GHz), Wi-Fi 300 (mbps, 2x2 MIMO/ 2,4 GHz)

    Transfer distance

    500M

    Operating system

    Windows 98/ME/NT/2003/7、Windows XP Home/Pro、Mac OSX 、Linux

    Size

    126mm×70mm×42mm（L×W×H）

    Weight

    0.15kg

    Operating voltage range

    AC100-250V

    Certification

    FCC,CE,ROHS

    Operating environment



    Working temperature: 0℃-50℃

    storage temperature：-30℃-80℃

    All specifications are subject to change without prior notice
