WD-ET2000M
WD-ET2000M

WD-ET2000M

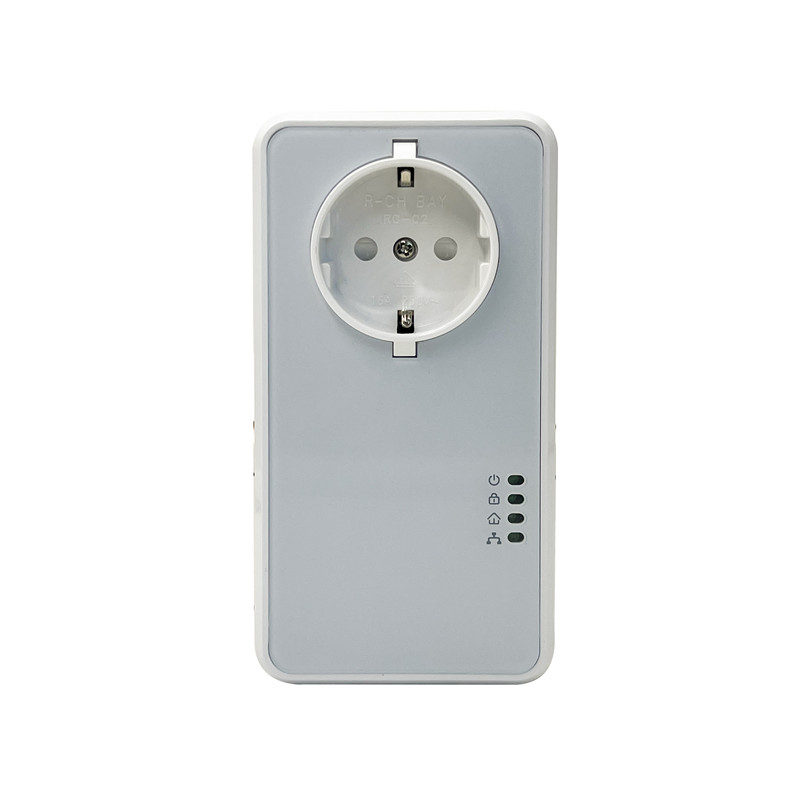

WD-ET2000MH with 2000Mbps transfer rate uses G.hn technology to transmit the Internet signal via the telephone line cable ( Ethernet over Phoneline). It can be connected between ONT and router only need 3 simple steps:


The first step is to connected the ONT via Ethernet cable to WD-ET2000MH; the second setp is to connect phoneline ; the third step is to put the device into outlet . on other side ,use the same way to connect WD-ET2000MH to router .then the broadband signal can transfer over the existing Phone line.

    Contact us
    product details
    description1

    PRODUCT Introduction

    ● Plug and play
    ● 1*Gigabit port
    ● Support G.hn Protocol standard
    ● Data transfer rates of up to 2000 Mbps
    ● Working temperature: 0℃-70℃
    ● Operating humidity: 10%-85% no condense
    ● Storage humidity:5%-90% no condense
    ● Passthrough function
    ● 1* phoneline port

    description1

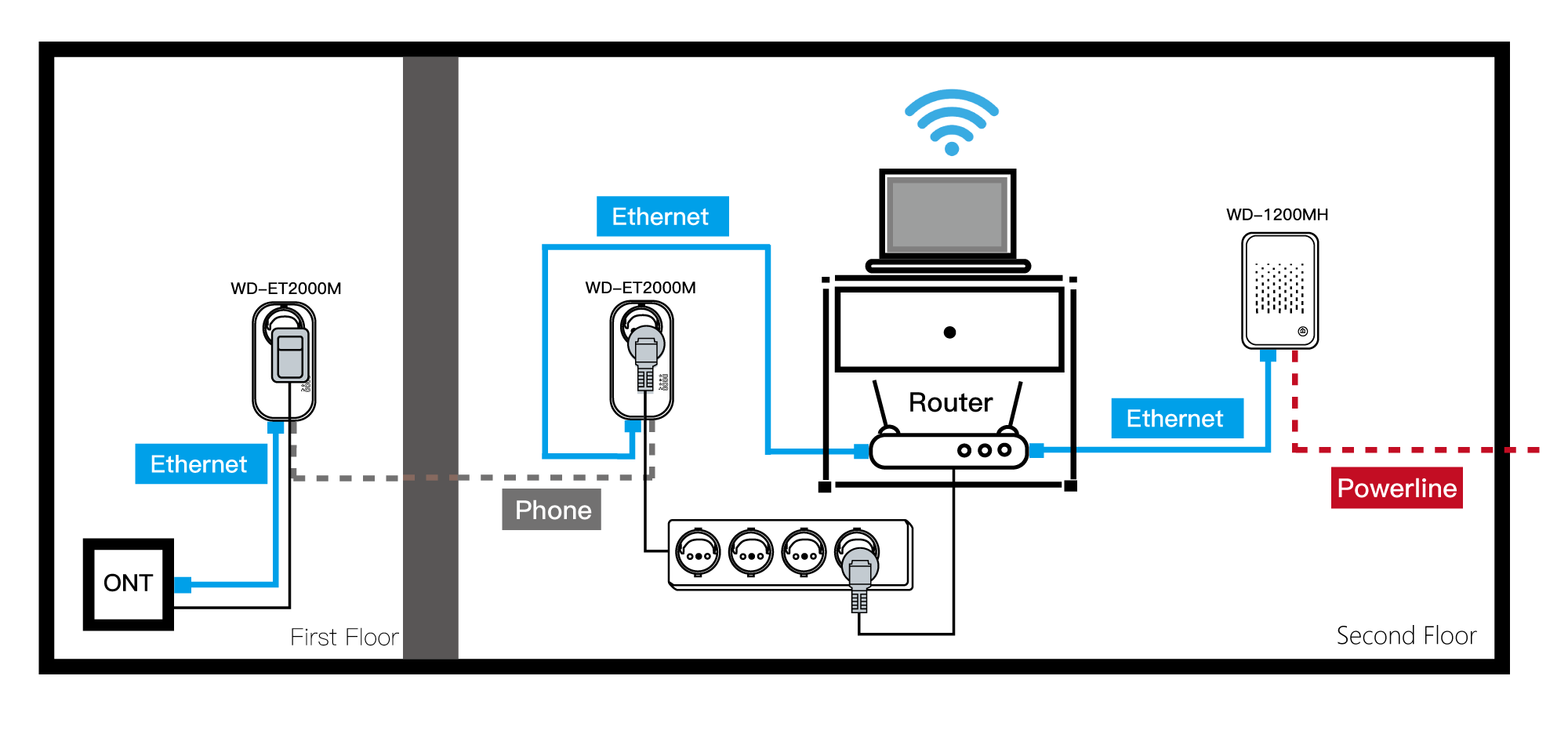

    Topology

    WD-ET2000M1s0q
    WD-ET2000M28gm

    description1

    Datasheets

    Item WD-ET2000MH
    Interface

    1*LAN 10/100/1000Base-TX self adaption RJ45

    1* phone line RJ11
    LED display lights PWR(power light), G.hn(G.hn signal light), Pair light(Security light), ETH(Ethernet light)
    Transmission frequency 2-200MHz (SISO-Two core cable ) 2-100MHz (MIMO-Four core cable)
    Protocol G.hn,IEEE802.3,IEEE802.3x, IEEE802.ab,IEEE802.3u 10/100/1000 Ethernet standard
    Security 128-AES
    Plug EU, UK, CH, US, AU
    Transfer rate(PHY) 2000Mbps
    Operating system Windows 98/ME/NT/2003/7/10/11 Windows XP Home/Pro Mac OSX  Linux
    Power source AC 100V-240V 60/50Hz
    Environment

    working temperature:0 ℃-70℃

    working humidity 10%-90% non-condensed state
    Size 135*70*43(mm)（L×W×H）
    Weight 200g
    Certification FCC, CE class B, RoHS
