WD-F1202MH-T

HomePlugAV2 PLC Port as Home Network Backbone by Using Existing power line
PHY Rate up to 1.2Gbps
2*10/100/1000Mbps Ethernet Ports
Energy Efficiency (Green) Ethernet Support
Signal Status Indication
QoS Priority and Mapping Support
IGMP Snooping Control
Compliant with IEEE 802.11 a, b, g, n, ac (2.4 / 5 GHz concurrent)
Built-in Wi-Fi 867 (mbps, 2x2 MIMO/ 5 GHz), Wi-Fi 300 (mbps, 2x2 MIMO/ 2,4 GHz)
Passthrough function

    Contact us
    product details
    description1

    PRODUCT Introduction

    Plug and play
    Two Gigabit port
    Support HomeplugAV2 Protocol standard
    Data transfer rates of up to 1200 Mbps
    IGMO (IPv4) Snooping & MLD (IPv6) Snooping
    Working temperature:  -25℃-70℃
    Operating humidity: 10%-85% no condense
    Storage humidity:5%-90% no condense
    300 Meters over electrical circuit

    description1

    PRODUCT parameters

    Item

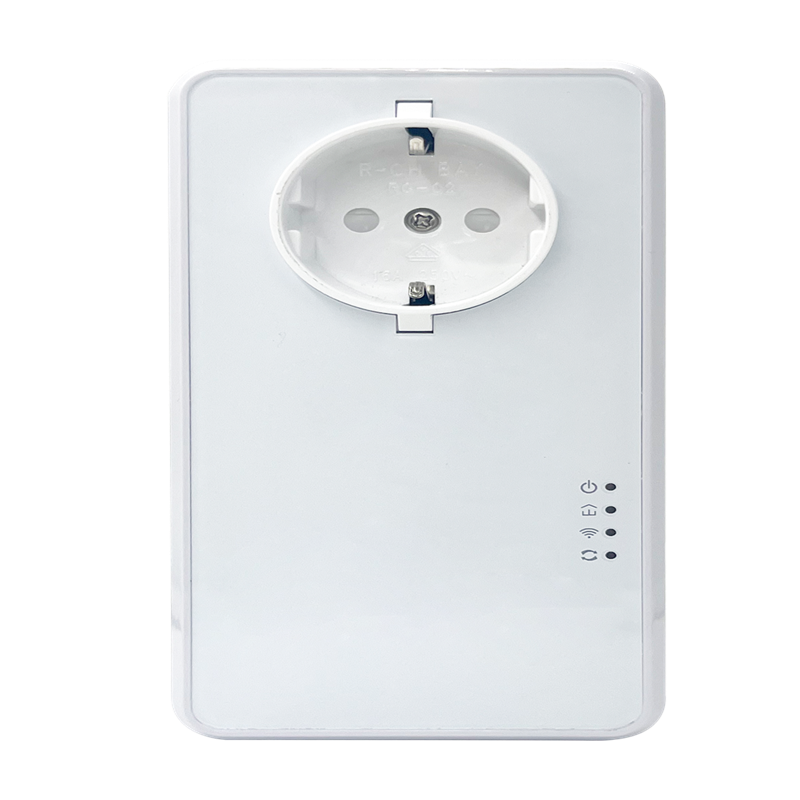

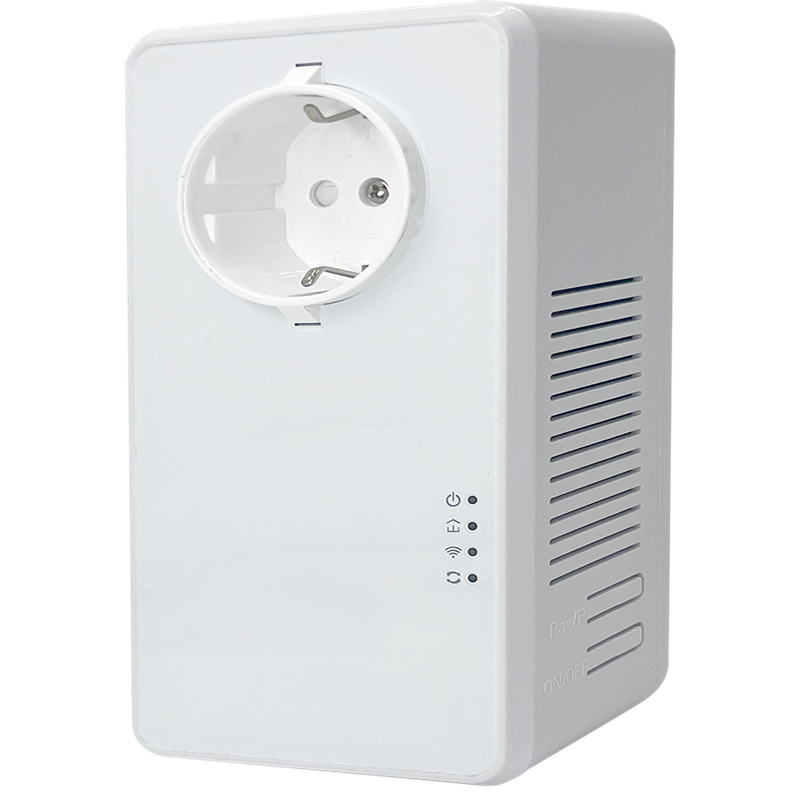

    WD-F1202MH-T

    Interface

    2*10/100/1000 Base-T self-adapting standard Ethernet interface

    Wi-Fi 867 (mbps, 2x2 MIMO/ 5 GHz), Wi-Fi 300 (mbps, 2x2 MIMO/ 2,4 GHz)

    1*POWER (AC) interface

    1*AC outlet  max16A

    LED display light

    PLC

    Wi-Fi

    WPS

    PWR

    Button

    PLC Pair Button

    WIFI WPS Button

    RST Button

    Modulate

    OFDM

    Transfer frequency band

    2and68MHz

    Protocol

    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.11 a, b, g, n, ac (2.4 / 5 GHz concurrent) , IEEE 1905.1, IEEE 802.1p, IEEE 1901

    Auto MDI/X Wi-Fi Alliance HomePlugAV2

    CSMA/CA, TDMA

    Security

    128-AES

    Transfer rate

    PLC 1200Mbps   Wi-Fi 867 (mbps, 2x2 MIMO/ 5 GHz), Wi-Fi 300 (mbps, 2x2 MIMO/ 2,4 GHz)

    Transfer distance

    500M

    Size

    150*75*43mm  (L*W*H)

    Operating system

    Windows 98/ME/NT/2003/7 /10/11Windows XP Home/Pro Mac OSX  Linux

    Operating voltage range

    AC100-250V

    Certification

    FCC,CE,ROHS

    Operating environment

    Working temperature: -20℃-70℃

    storage temperature：-30℃-80℃

    description1

    Topology

    1

    description1

    PRODUCT Features

    • HomePlugAV2 PLC Port as Home Network Backbone by Using Existing power line
      PHY Rate up to 1.2Gbps
      2*10/100/1000Mbps Ethernet Ports
      Energy Efficiency (Green) Ethernet Support
      Signal Status Indication
      QoS Priority and Mapping Support
      IGMP Snooping Control
      Compliant with IEEE 802.11 a, b, g, n, ac (2.4 / 5 GHz concurrent)
      Built-in Wi-Fi 867 (mbps, 2x2 MIMO/ 5 GHz), Wi-Fi 300 (mbps, 2x2 MIMO/ 2,4 GHz)
      Passthrough function
